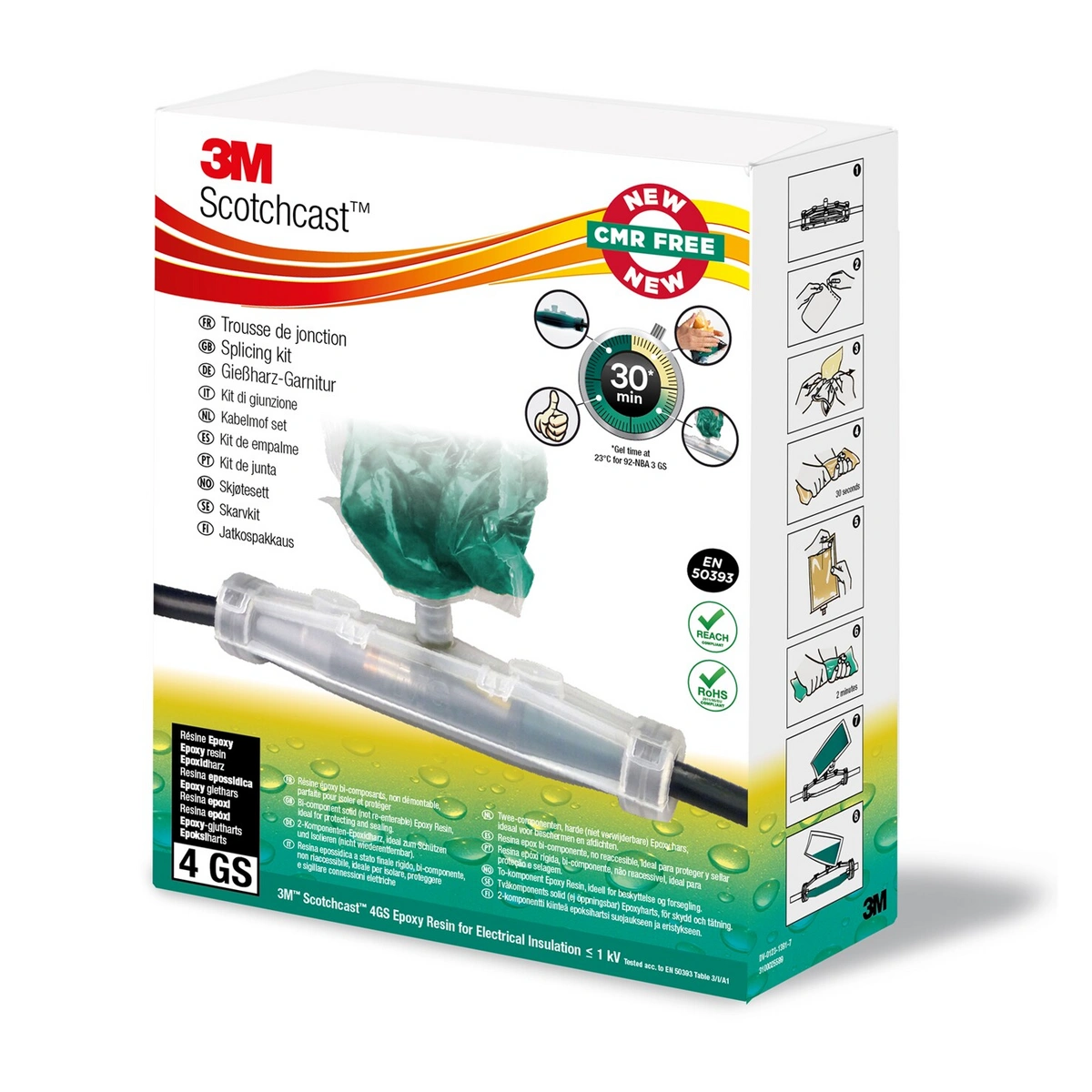

3M™ Scotchcast™ Resin kit 92-NBA GS is a premium inline electrical splice, suitable up to 1 kV application. It contains the high-performance, epoxy-based, CMR-free 3M™ Scotchcast™ Resin 4 GS that changes colour after the two components of the resin have been correctly mixed. The innovative 3M closed mix & pouring system ensures quick and clean delivery of the resin into the transparent one piece mould body design.

3M™ Scotchcast™ Resin kit 92-NBA GS is used for the insulation and mechanical protection of low voltage cable connections up to 1 kV. There are product options from Size 0 to Size 7 covering a wide range of cable cross sections from 1.5 mm2 to 240 mm2; in addition, Size 1 and Size 3 are also available with a connector included. The innovative design of the 3M™ Scotchcast™ Resin kit 92-NBA GS allows for a fast and clean installation, thanks to the proprietary closed mixing and pouring (CMP) system integrated to the resin bag and the one-part mould body. Correct cable setting is secured by the phase spacer component included in the kit (for sizes 1-4) as well as by the complete transparency of the mould. 3M™ Scotchcast™ Resin 4 GS hydrophobic and CMR-free epoxy resin meets IEC 60455-3-8 requirements and is compliant with EU directive 2011/65/EU (RoHS) and EU directive 1907/2007/EC (REACH), guaranteeing the highest grade of electrical insulation for professional use. 3M™ Scotchcast™ Resin kit 92-NBA GS meets the type test according to EN 50393.
